GIGABYTE Z790 AORUS PRO X ATX Motherboard
Original price was: 58,850.00৳ .51,899.00৳ Current price is: 51,899.00৳ .
Key Features
- Model: Z790 AORUS PRO X
- Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 4 x DDR5 DIMMs, up to 8266(O.C)
- Graphics Output: 1 x DisplayPort, 1 x HDMI port
- Features: Intel Wi-Fi 7 BE200 (For PCB rev. 1.1)
Description

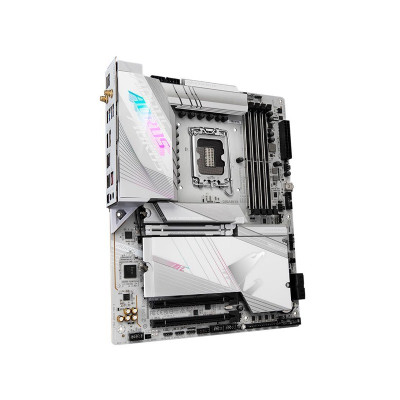

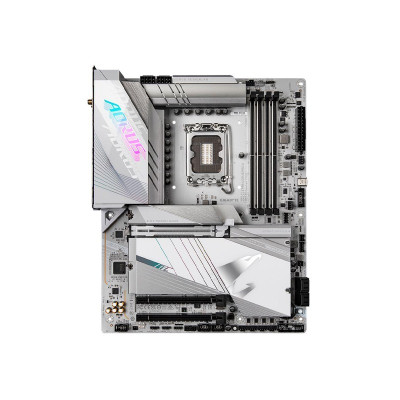

GIGABYTE Z790 AORUS PRO X ATX Motherboard
The GIGABYTE Z790 AORUS PRO X ATX Motherboard is built for extreme gaming, high-end computing, and future-proof performance. Powered by the Intel Z790 chipset, this motherboard supports the latest 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors on the LGA1700 socket. Designed with advanced connectivity, PCIe 5.0 support, DDR5 memory compatibility, and integrated Wi-Fi 7, it’s the perfect foundation for any next-gen gaming or productivity PC build. With cutting-edge thermal design, intelligent fan control, and robust power delivery, the Z790 AORUS PRO X delivers unrivaled performance and durability, making it a top-tier choice for enthusiasts and professionals alike.
Key Features of GIGABYTE Z790 AORUS PRO X ATX Motherboard
Support for Latest Intel CPUs
Compatible with 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, this motherboard is future-ready and ensures exceptional processing power for modern tasks.
High-Speed DDR5 Memory Support
Features four DDR5 DIMM slots supporting up to 192GB RAM and speeds up to 8266MHz (OC), offering blazing-fast multitasking and efficient memory performance for demanding applications.
PCIe 5.0 Graphics Slot
Equipped with a PCIe 5.0 x16 slot, it maximizes GPU bandwidth for the latest graphics cards, ensuring ultra-smooth visuals and top-tier gaming or content creation experiences.
Next-Gen Storage Options
Offers five M.2 slots (PCIe 5.0/4.0/SATA) and four SATA 6Gb/s connectors, along with RAID support for both NVMe and SATA, giving you exceptional flexibility and lightning-fast data access.
Integrated Wi-Fi 7 and 5GbE LAN
Delivers blazing wireless speeds with Wi-Fi 7 and high-speed wired connectivity through Realtek 5GbE LAN, perfect for gaming, streaming, or professional workloads.
USB 3.2 Gen 2×2 and Thunderbolt Support
Comes with multiple USB Type-C and USB 3.2 ports, including 20Gbps Gen 2×2 support and headers for Thunderbolt add-in cards, ensuring super-fast data transfers and versatile device compatibility.
Premium Audio with ALC1220-VB
Features Realtek ALC1220-VB codec for crystal-clear high-definition audio across 2/4/5.1/7.1-channel setups, making it ideal for immersive gaming and media experiences.
Enhanced Cooling and RGB Customization
Includes multiple fan/water pump headers, temperature sensor headers, and RGB Gen2 LED strip headers for advanced thermal management and full RGB lighting control via GIGABYTE Control Center.
Reliable BIOS and Software Support
Uses AMI UEFI BIOS and supports Q-Flash, Q-Flash Plus, Smart Backup, and the GIGABYTE Control Center for easy updates and optimal system management.
Durable Build and ATX Form Factor
Built on a solid ATX platform measuring 30.5cm x 24.4cm, the motherboard features robust design elements and components for long-term reliability and compatibility.
Buy GIGABYTE Z790 AORUS PRO X ATX Motherboard from Canvas IT in BD
If you’re looking to upgrade your PC with the latest and most powerful components, the GIGABYTE Z790 AORUS PRO X ATX Motherboard is the right choice. At Canvas IT, we bring you original GIGABYTE motherboards at the best price in Bangladesh. Whether you’re a gamer, content creator, or tech enthusiast, you’ll find unmatched performance, fast delivery, and local warranty support when you shop with us. Buy now and future-proof your build with the confidence and reliability that Canvas IT offers.
What is the price of the GIGABYTE Z790 AORUS PRO in Bangladesh?
The latest price of GIGABYTE Z790 AORUS PRO in Bangladesh is 51,899৳. You can buy the GIGABYTE Z790 AORUS PRO at the best price from our website or visit any of our showrooms.
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | ealtek ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. Chipset: |
|
| Memory | ||
| Type | DDR5 | |
| Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
|
| Supported Memory | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz - 1 x USB Type-C port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920x1080@30 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB Type-C port (DisplayPort), with USB 2.0 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |

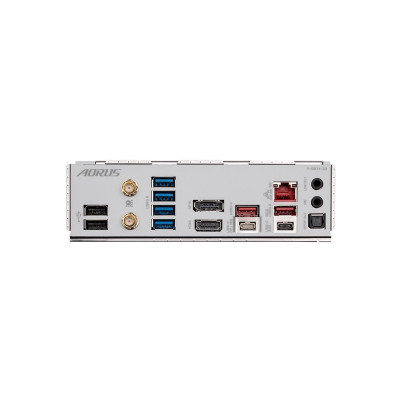

| USB (s) | Chipset: - 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port onboard, with USB 2.0 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 2 x audio jacks | |
| Wireless Communication module | Wireless Communication module Intel Wi-Fi 7 BE200 (For PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
