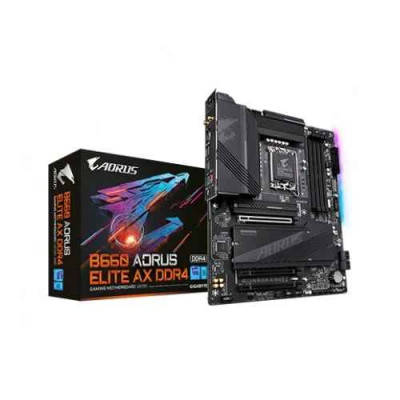

Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard

SKU: 10352
Brand:

Original price was: 24,500.00৳ .Current price is: 23,000.00৳ .

Key Features

  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna

Description

Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard

If you’re building a high-performance PC and want powerful compatibility with the latest Intel processors, the Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard is an excellent choice. This ATX motherboard supports Intel’s 14th, 13th, and 12th Gen Core processors and brings powerful connectivity, optimized thermal solutions, and elite memory performance. Designed for gamers and PC enthusiasts, it offers next-gen connectivity, enhanced audio, and a range of expansion options—all crafted with Gigabyte’s renowned quality and stability.

Key Features of Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard

Next-Gen Processor Support

Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors on the LGA1700 socket, making it ideal for current and future builds.

Intel B660 Chipset

Powered by the Intel B660 Express Chipset, it offers the balance of performance and value with advanced connectivity features and improved power delivery.

DDR4 Memory up to 5333MHz (OC)

With 4 DIMM slots supporting up to 128GB DDR4 RAM, this board delivers blazing-fast memory performance with extensive overclocking support.

PCIe 4.0 Graphics Slot

Comes equipped with a PCIe 4.0 x16 slot for high-speed GPU performance, ensuring smoother gameplay and better rendering in creative applications.

Triple M.2 Slots & RAID Support

Offers three M.2 connectors, including PCIe 4.0 support for ultra-fast NVMe SSDs, along with RAID 0, 1, 5, and 10 for enhanced storage flexibility and reliability.

Wi-Fi 6E & Bluetooth 5.2

Integrated Intel Wi-Fi 6E ensures fast and stable wireless connectivity, while Bluetooth 5.2 provides seamless peripheral pairing.

2.5GbE LAN

Features Realtek 2.5GbE LAN for high-speed, low-latency wired network performance, perfect for gamers and streamers.

RGB Fusion & Addressable LED Support

Customizable RGB lighting with support for addressable LED strips lets you personalize your rig with stunning lighting effects.

Premium Audio with S/PDIF Out

Enjoy immersive sound with Realtek High Definition Audio supporting 2/4/5.1/7.1-channel output and S/PDIF digital audio.

Advanced BIOS & Q-Flash Plus

Includes licensed AMI UEFI BIOS with Q-Flash Plus support, allowing BIOS updates without CPU, RAM, or GPU installed.

Buy Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard from Canvas IT in BD.

If you’re in Bangladesh and looking to upgrade your PC with a high-performance, future-ready motherboard, Canvas IT is your trusted destination. We offer authentic Gigabyte B660 AORUS ELITE AX DDR4 motherboards with competitive pricing and a full 3-year official warranty. With fast delivery and reliable after-sales support, buying from Canvas IT ensures you get the best value and service for your PC build. Don’t wait—build your dream setup with Canvas IT today.

What is the price of the Gigabyte B660 AORUS ELITE AX Motherboard in Bangladesh?

The latest price of the Gigabyte B660 AORUS ELITE AX Motherboard in Bangladesh is 23,000৳. You can buy the Gigabyte B660 AORUS ELITE AX Motherboard at the best price from our website or visit any of our showrooms.

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

Basic Information
Supported CPU LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core, Pentium Gold, and Celeron
L3 cache varies with CPU
Chipset Intel B660 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2 x PCI Express x1 slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Maximum Memory up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI 1 x HDMI 2.0 port
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
2 x USB Type-C ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports, available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
Wireless Communication module Intel® Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years
