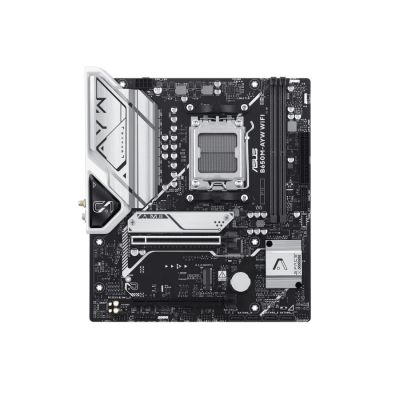

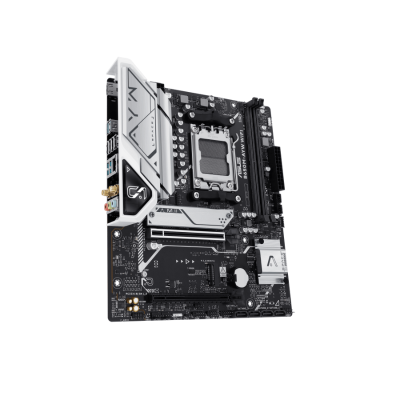

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard
19,500.00৳
Key Features
- Supported CPU: Ryzen 9000 & 8000 & 7000 Series Processors for Socket AM5
- Supported Memory: 2x DIMM slots, Max. 96GB DDR5, Up to 8000+MT/s (OC)
- Graphics Output: 1 x HDMI port, Storage: 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Features: 1 x 2.5Gb LAN, WiFi 6, PCIe 5.0 slots, Two-Way AI Noise Cancelation
Description
ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard
The ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard delivers top-tier performance, stability, and next-gen features. With support for AMD Ryzen 9000, 8000, and 7000 series processors, DDR5 memory, PCIe 5.0 storage, and integrated WiFi 6, this micro-ATX board ensures future-ready capability. It’s engineered with ASUS exclusive features like 5X Protection III, Aura Sync RGB, and Q-Design enhancements, making it a smart choice for PC enthusiasts, gamers, and professionals alike.
Key Features of ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard
Next-Gen AMD AM5 CPU Support
Compatible with Ryzen 9000, 8000, and 7000 series processors, this board harnesses the full power of AMD’s latest architecture for maximum efficiency and performance.
DDR5 Memory with Extreme Overclocking
Enjoy ultra-fast computing with support for up to 96GB DDR5 RAM at 8000+ MT/s (OC), optimized with OptiMem II and AMD EXPO profiles for seamless overclocking.
PCIe 5.0 and PCIe 4.0 M.2 Slots
Equipped with two M.2 slots, including one PCIe 5.0 x4 (on Ryzen 9000/7000), ensuring lightning-fast storage speeds for gaming, editing, and productivity tasks.
WiFi 6 and 2.5Gb Ethernet
Enjoy ultra-low latency and high-speed networking with built-in WiFi 6 and Realtek 2.5Gb Ethernet, perfect for gaming and streaming in high definition.
ASUS 5X Protection III
Enhanced hardware safeguards, including DIGI+ VRM, LANGuard, SafeSlot Core+, and stainless-steel I/O, provide superior durability and protection against power surges.
Immersive Audio with Realtek 7.1 Surround Sound
Experience studio-grade sound thanks to premium audio capacitors, dedicated audio PCB layers, and high-definition playback support up to 24-bit/192kHz.
Comprehensive I/O and USB Support
With 15 USB ports in total, including USB 10Gbps, USB-C, and USB 2.0, this board ensures extensive connectivity for all your peripherals and devices.
Q-Design for Easy DIY Builds
Enjoy hassle-free PC building with user-friendly features like M.2 Q-Latch, Q-DIMM, and Q-LED Core, streamlining installation and troubleshooting.
Aura Sync RGB Customization
Personalize your rig with addressable Gen 2 RGB headers and synchronize lighting across compatible ASUS components using Aura Sync software.
Buy ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard from Canvas IT in BD
If you’re searching for the best place to buy an ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard in Bangladesh, Canvas IT is your go-to destination. We offer authentic ASUS products with full warranty support, competitive prices, and reliable nationwide delivery. Get your next-gen motherboard now and power up your custom build with confidence from Canvas IT – your trusted tech partner in BD.
What is the price of the ASUS B650M-AYW WIFI Motherboard in Bangladesh?
The latest price of the ASUS B650M-AYW WIFI Motherboard in Bangladesh is 19,500৳. You can buy the ASUS B650M-AYW WIFI Motherboard at the best price from our website or visit any of our showrooms.
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B650 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| M.2 Socket | Total supports 2 x M.2 slots AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header |
|
| USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks | |
| Wireless Communication module | WiFi 6 | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
